XPA-9 Gen3 Nine Channel Power Amplifier

Circuit Topology

• The XPA-9 Gen3 is a fully modular audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class H™ power supply topology, and microprocessor-controlled fault protection.

• The XPA-9 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS).

Audio Specifications

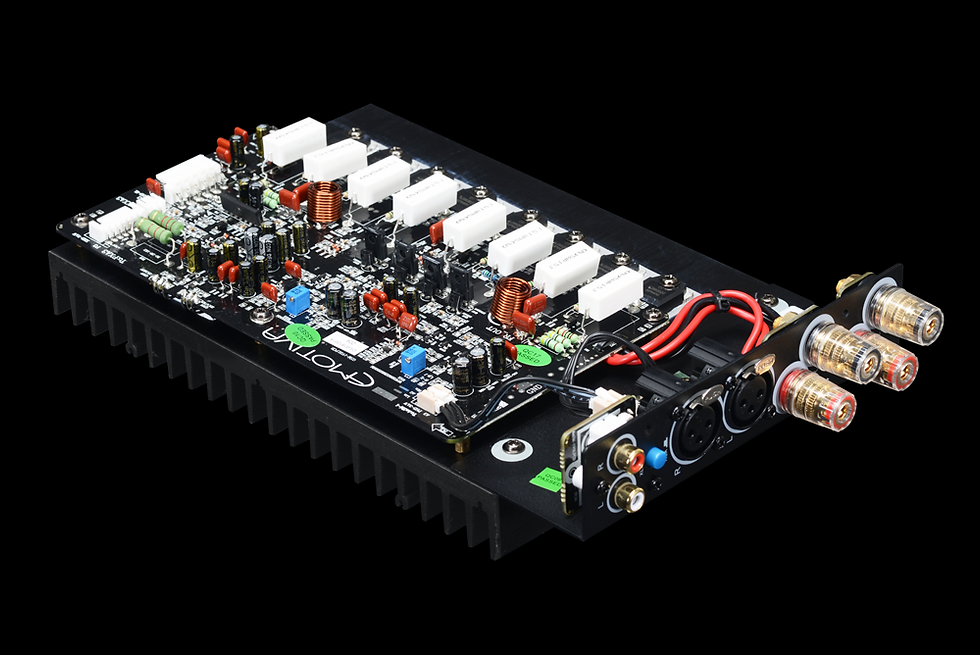

The XPA-9 Gen3 features five of our High-Powered Single Channel Modules and two of our Stereo Modules.

Audio Specifications (High-Powered Single Channel Modules):

• Power Output:
  300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
  550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven.
  300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
  490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.

• Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).

• Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB.

• THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms.

• Signal to Noise Ratio (8 Ohm load):
  > 115 dB; ref FTC rated power; unbalanced input (A-weighted).
  > 86 dB; ref 1 watt; unbalanced input (A-weighted).

• Minimum Recommended Load Impedance (per channel): 4 Ohms
  (which equals one 4 Ohm load or two paralleled 8 Ohm loads).

• Damping Factor (8 Ohm load): > 500.

• Input Sensitivity (for rated power; 8 Ohm load): 1.5 V.

• Gain: 29 dB.

• Input Impedance:
  33 kOhms (balanced).
  23.5 kOhms (unbalanced).


Audio Specifications (Stereo Modules):

• Power Output:
  65 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
  100 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven.
  65 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
  100 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.

• Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).

• Broad Band Frequency Response: 50 Hz to 80 kHz +0/-1.5 dB.

• THD + noise: < 0.02%; at 60 watts RMS; 1 kHz; 8 Ohms.

• Signal to Noise Ratio (8 Ohm load):
  > 105 dB; ref FTC rated power; unbalanced input (A-weighted).
  > 85 dB; ref 1 watt; unbalanced input (A-weighted).

• Minimum Recommended Load Impedance (per channel): 4 Ohms
  (which equals one 4 Ohm load or two paralleled 8 Ohm loads).

• Damping Factor (8 Ohm load): > 500.

• Input Sensitivity (for rated power; 8 Ohm load): 0.8 V (800 mV).

• Gain: 29 dB.

• Input Impedance:
  33 kOhms (balanced).
  23.5 kOhms (unbalanced).

Input And Output Connections

• Input Connections (High-Powered Single Channel Modules):
  Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.

• Input Connections (Stereo Modules):
  2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable.

• Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts.

• Trigger:
  Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
  Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements

• Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected).

Front Panel Controls and Indicators

• Standby: push button (halo ring changes color to indicate Standby or On).

• Status LEDs: one per channel; blue.

• Status LEDs change to red to indicate a fault condition.

Rear Panel Controls

• AC Power switch: rocker switch (switches AC main power).

• Status LEDs switch: disables front panel Status LEDs and dims Standby button halo.

• Input selector switches (one per channel):
  metal toggle switches; select between balanced and unbalanced inputs.

• Circuit Breaker: press button to reset circuit breaker.

Protection

• The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Mechanical

• Dimensions:
  17” wide x 8” high x 19” deep (unboxed; including feet).
  17” wide x 7” high x 19” deep (unboxed; without feet).
  24-1/2” wide x 12” high x 24-3/4” deep (boxed).

• Weight:
  53 lbs (unboxed).
  58 lbs (boxed).
